Full System (Voodoo)
WelshProgrammer April 26, 2025Specs
| Name | Value |
|---|---|
| Name | Voodoo |
| Chassis | CHL Beige Mid Tower ATX |
| Floptical | Panasonic 1.44 MB 3.25 Beige |
| Floptical | Safronic 5.25 Beige |
| Graphics Adapter | Matrox G450 8MB |
| Graphics Adapter | 3DFX Voodoo2 12MB |
| Graphics Adapter | 3DFX Voodoo2 12MB |
| HBA | Adaptec Ultra160 SCSI Adapter |
| Hard Disk | Seagate 10GB Barracuda |
| Hard Disk | Fujitsu 9.1 GB |
| Motherboard | ASUS P2B-F |
| Network Card | 3COM 100Mbit Ethernet Fast EtherLink XL |
| Optical Drive | Mitsumi CD-RW CD-24x/RW-4x Beige |
| Power Supply | Thermaltake Smart BM2 - 450W |
| Processor | Intel Pentium 2/II - 266 MHz |
| RAM | Samsung 256MB SDRAM PC-133 |
| RAM | Samsung 256MB SDRAM PC-133 |
| Sound Card | Magic S23 ISA |
| Sound Card | Dream WaveBlaster X2GS |
Details
Unfortunately, I have no photos of this computer but I do remember that it was a White AT Mid Tower with a tinted LED status bar in the middle of the front panel and a hydraulic drive bay cover that used to slide up and down to reveal the drive bays.
Originally belonged to my dad, the Voodoo2 card that was in it was destroyed by a short circuit.
After that, the Computer was scrapped and replaced by another beige box that my dad bought from a local computer store called MP Computers.
Update: 2022-11-21
After having the Voodoo2 sit on my shelf for a long time, I decided to build a derivative of the original machine.
It is very close to the existing MoreVoodoo but I felt that the Voodoo2 and P2-233 combination should not be overlooked and that it deserved a machine of its own instead of just sitting in my parts bin.
However, instead of the original S3-Trio that my dad's computer used I'm going to pair the Voodoo2 with a Matrox Millenium G200 card for good 2D acceleration and DirectX 5 compatibility.
For 3D games, the Voodoo2 using Glide or OpenGL is likely to beat the G200 in most cases, potentially the G200 will have better DirectX support and might outpace the Voodoo, but at least I will have options for rendering backends.
Update: 2022-12-31

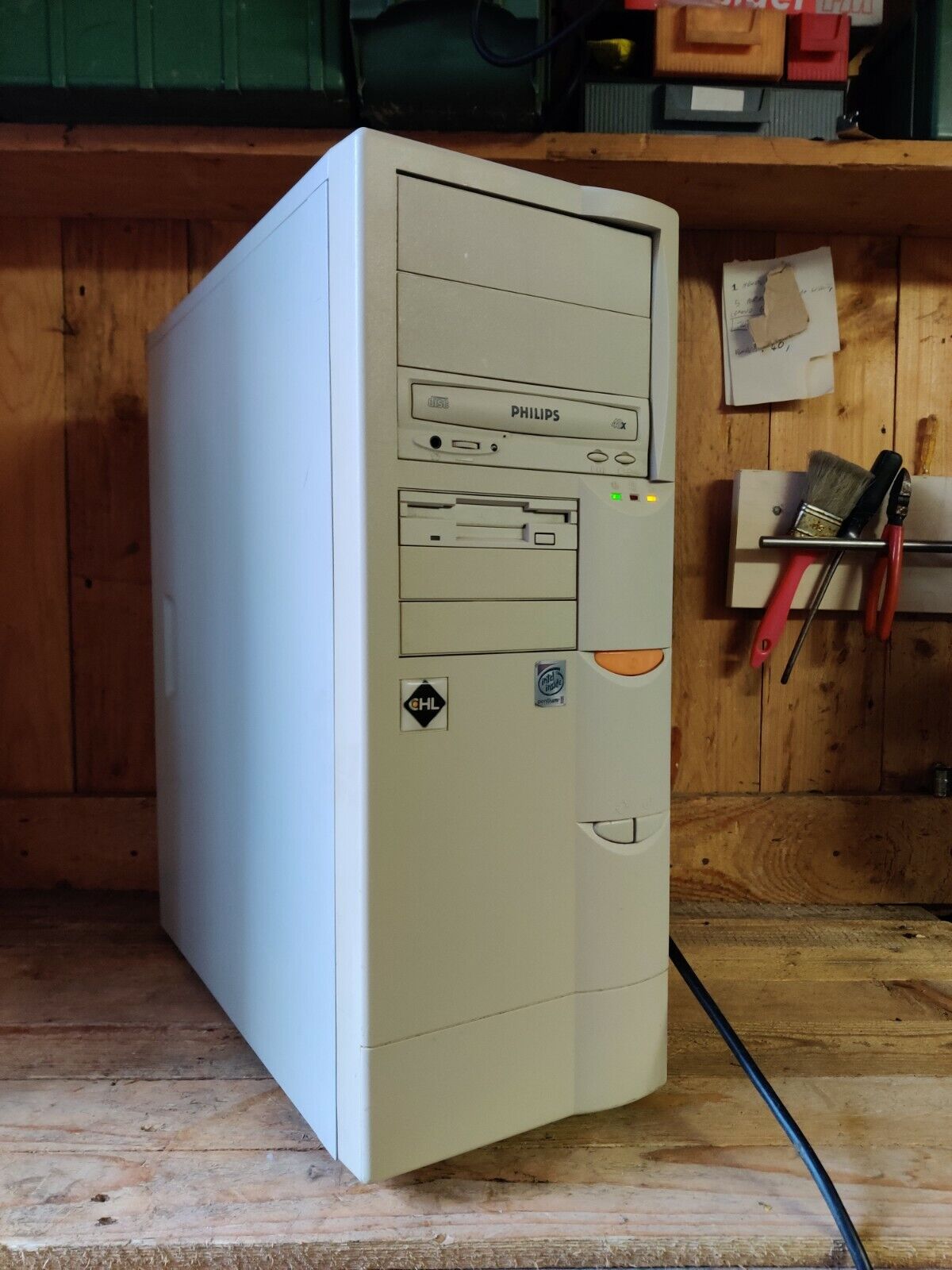

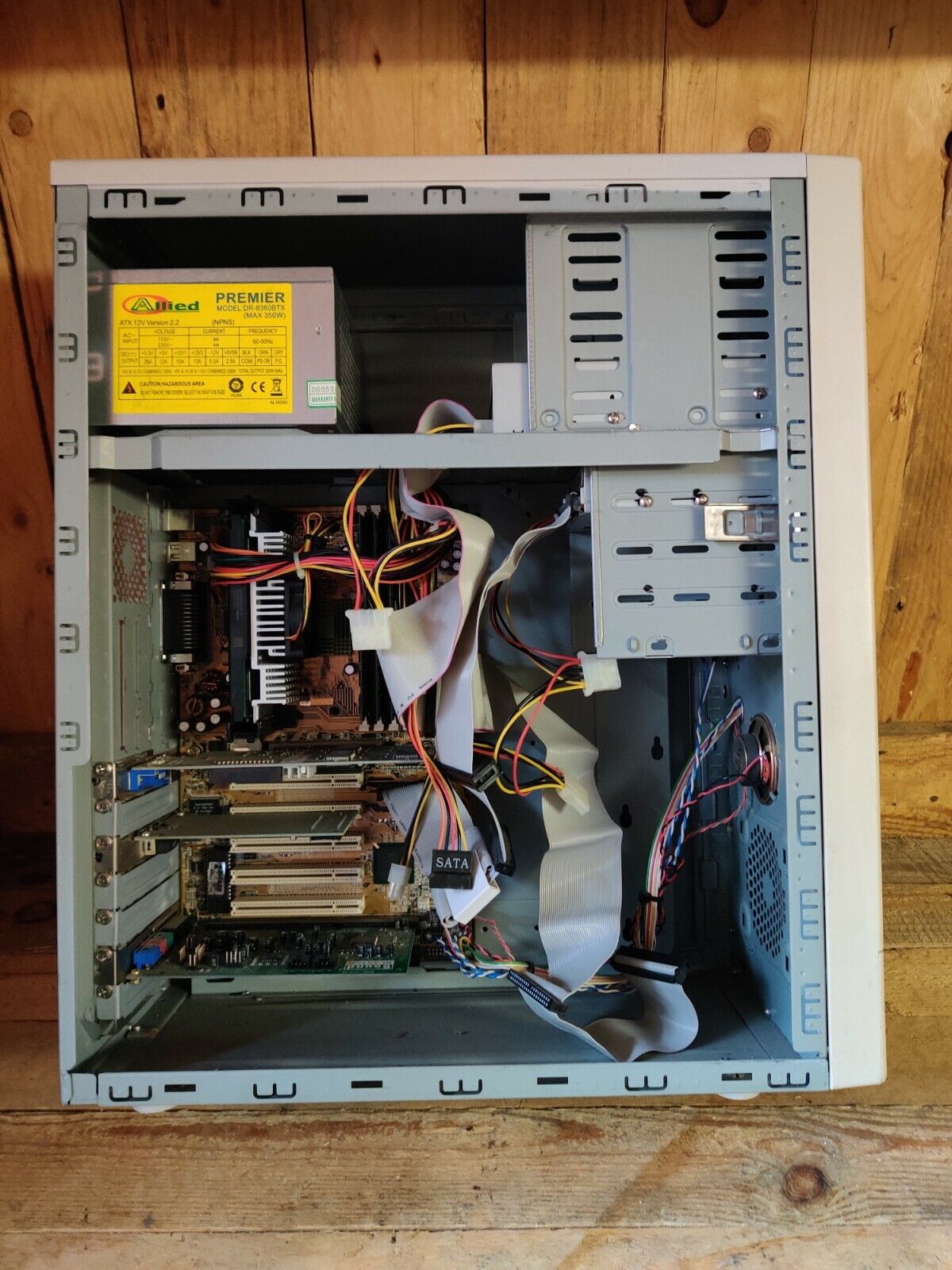

At long last Voodoo is back up and running. After waiting on a replacement power supply, I was finally able to put it mostly together.
I hit some unexpected snags on the way,

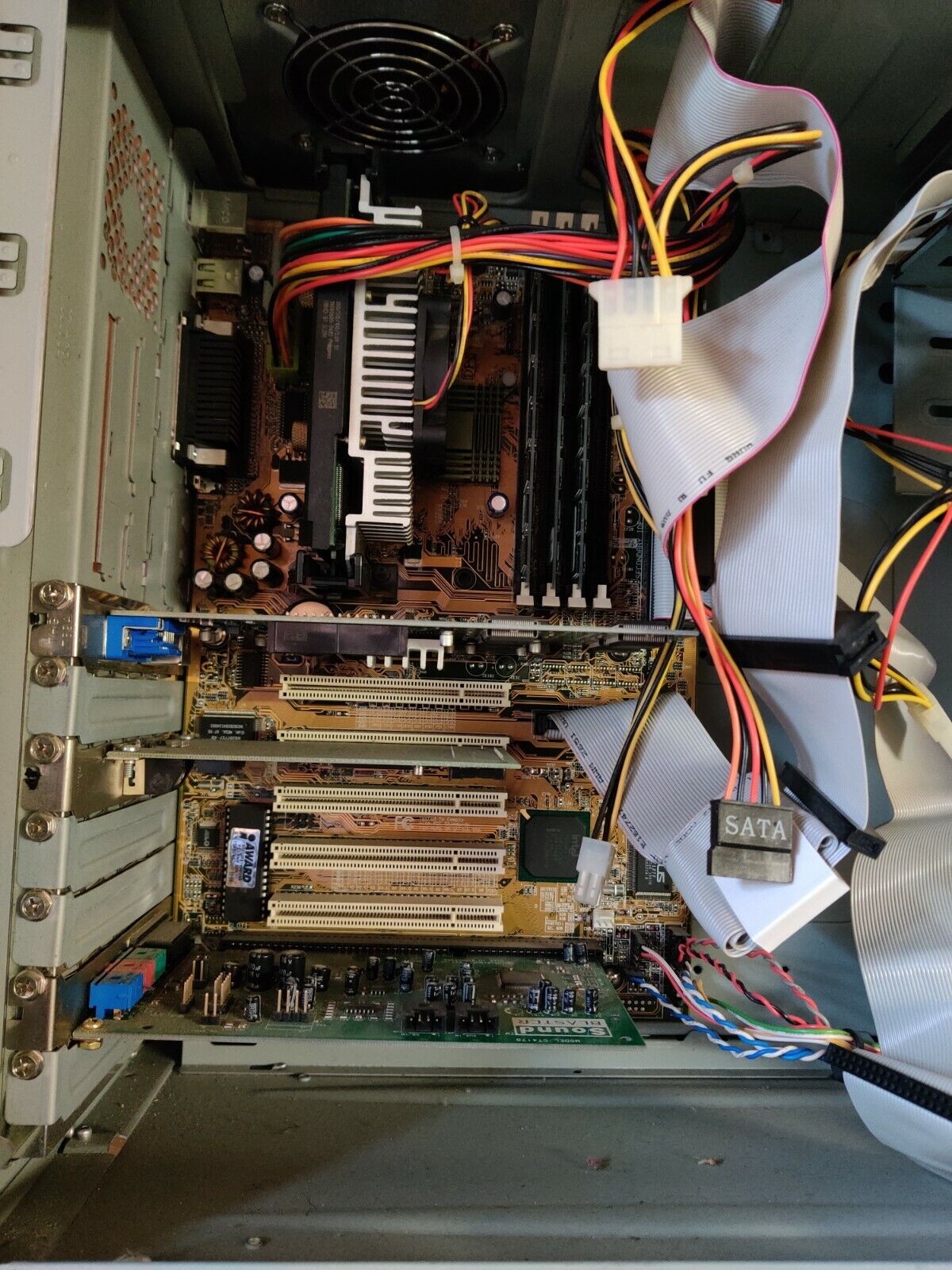

- The CPUs heatsink is huge, so much so that it sits on top of some of the capacitors on the board near the socket.
- The heatsink by itself doesn't seem sufficient so I bodged a 40mm fan on top for now.
- I've ordered a 50mm exhaust fan to try and increase the airflow in the case.
- The hard drive still hasn't arrived but it should be here next week.
- Two of the three RAM modules don't seem to work properly and were causing inconsistent POST so they were removed, 128MB is still way more than it needs.

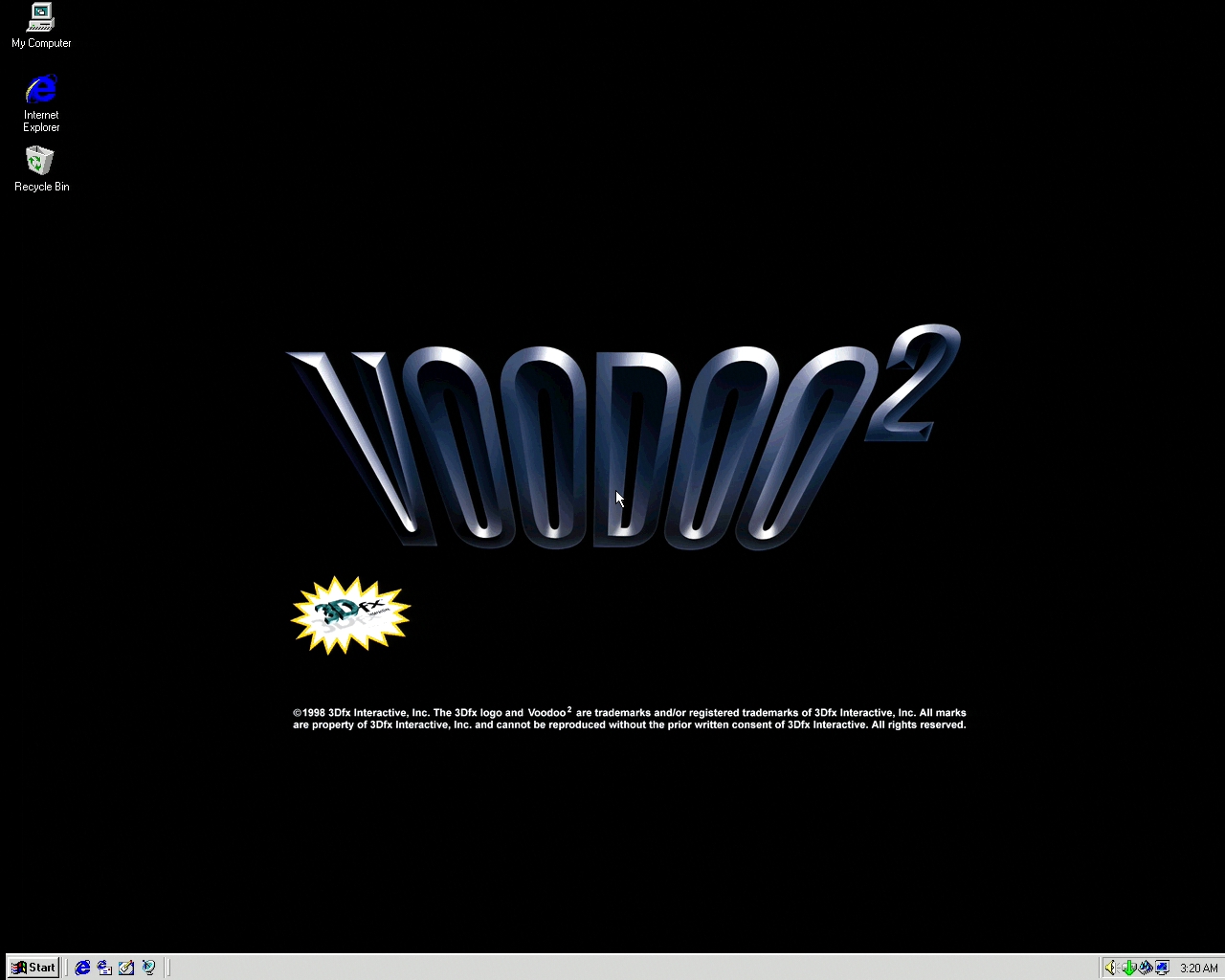

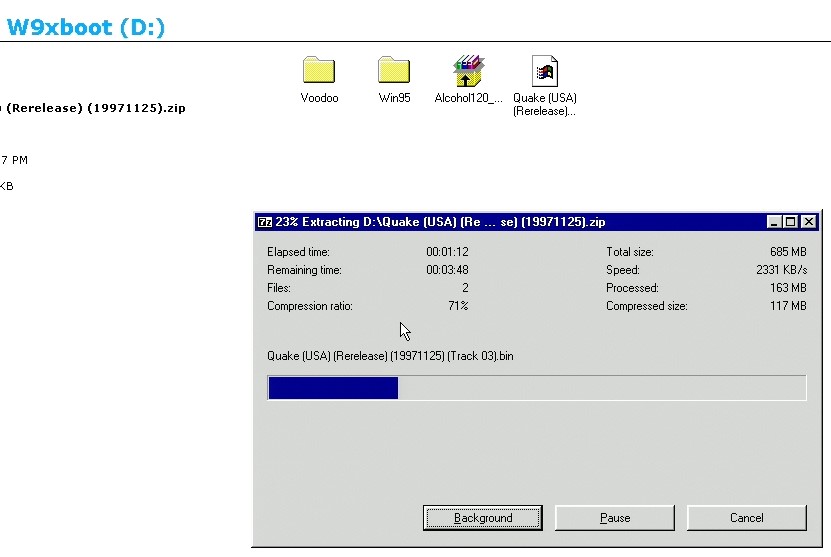

Windows 95 OSR 2 is now fully installed along with essential drivers and DirectX 6.1.

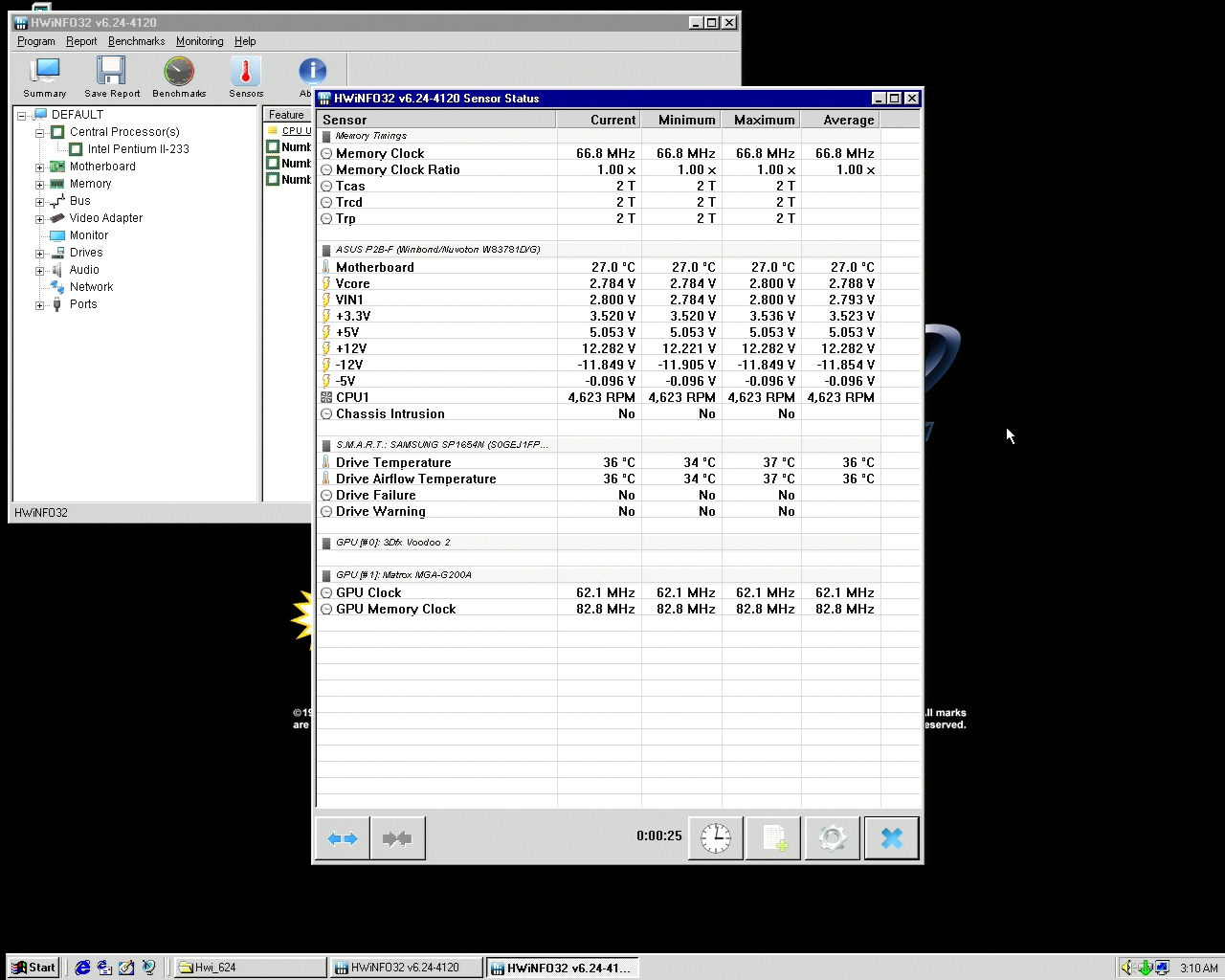

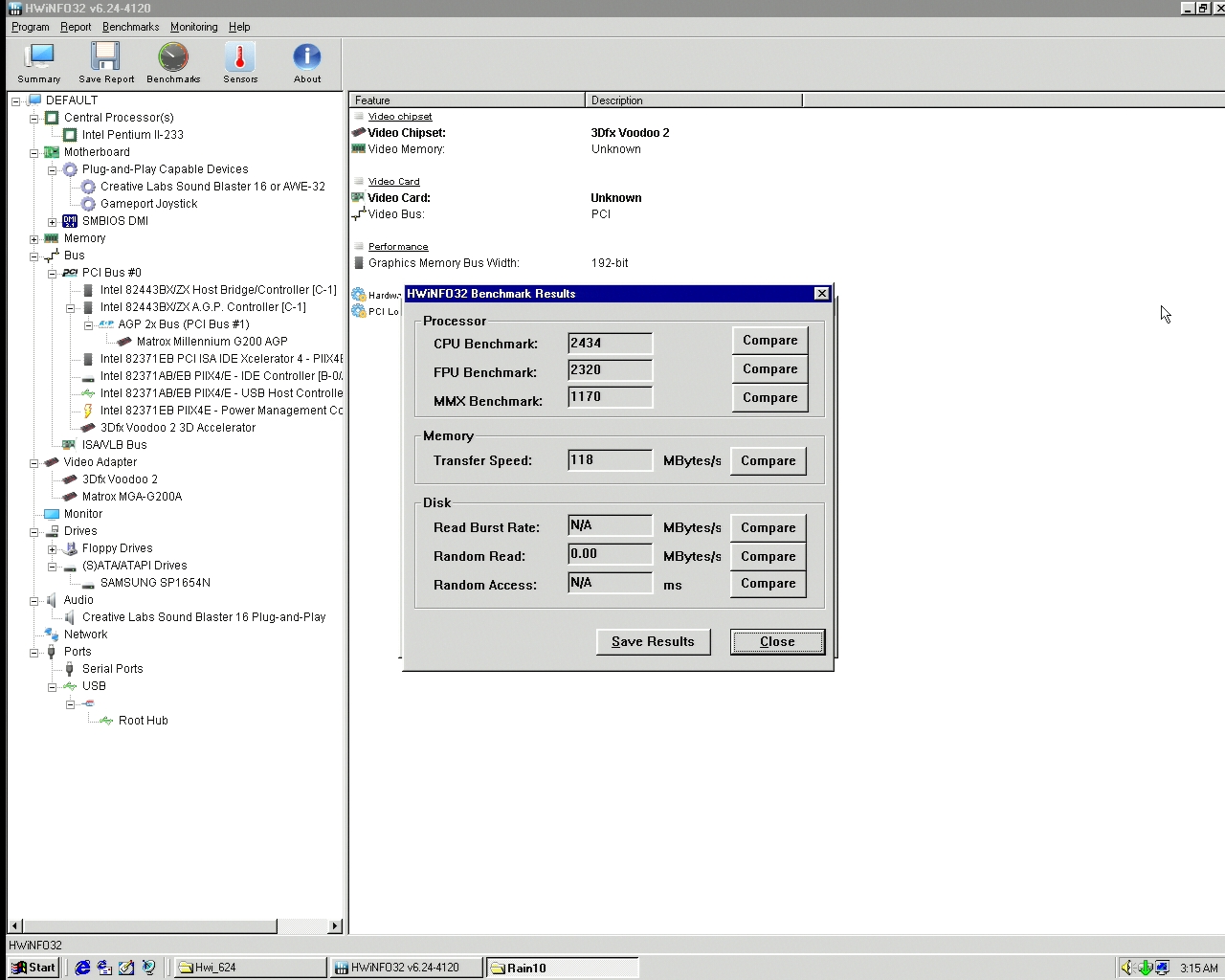

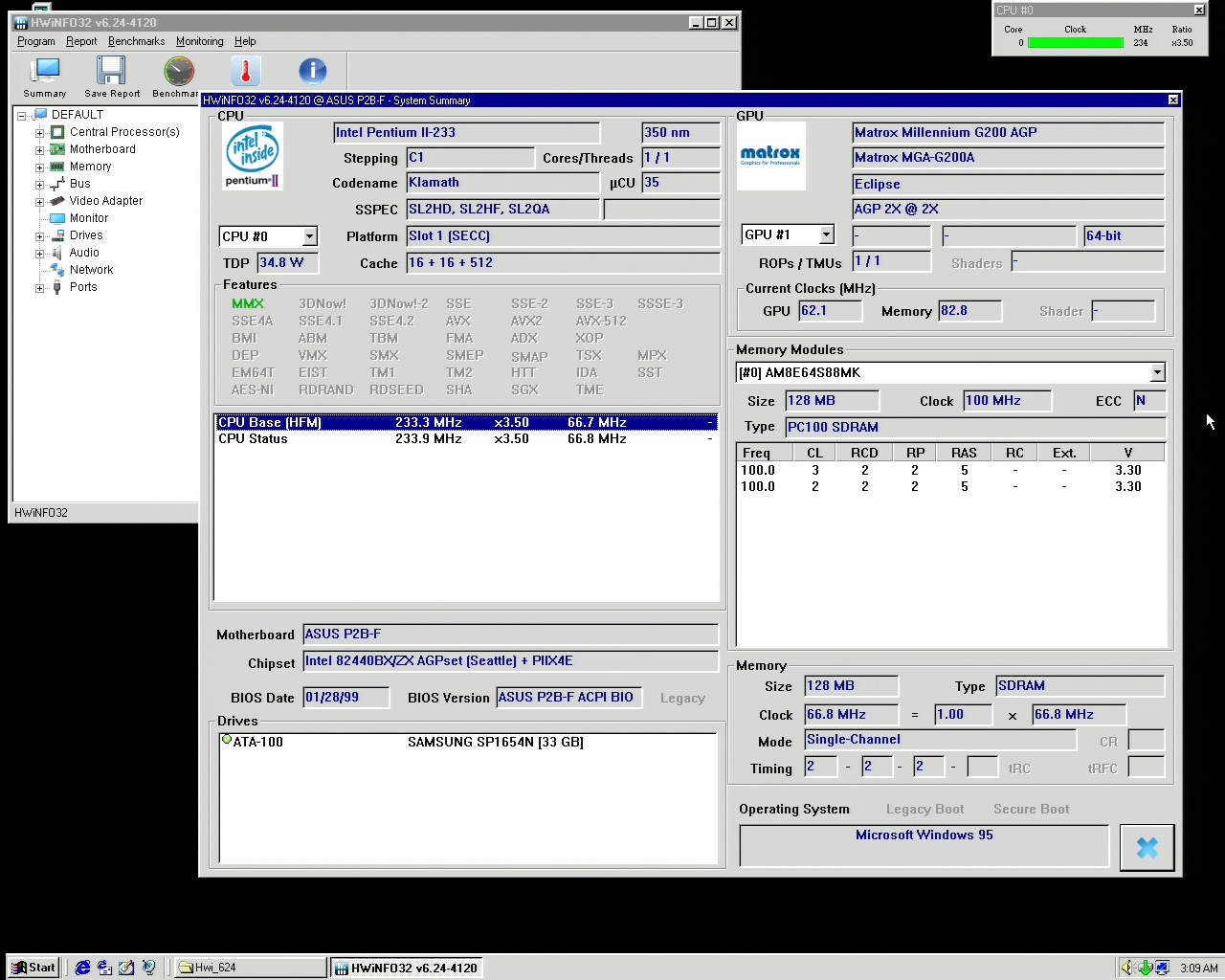

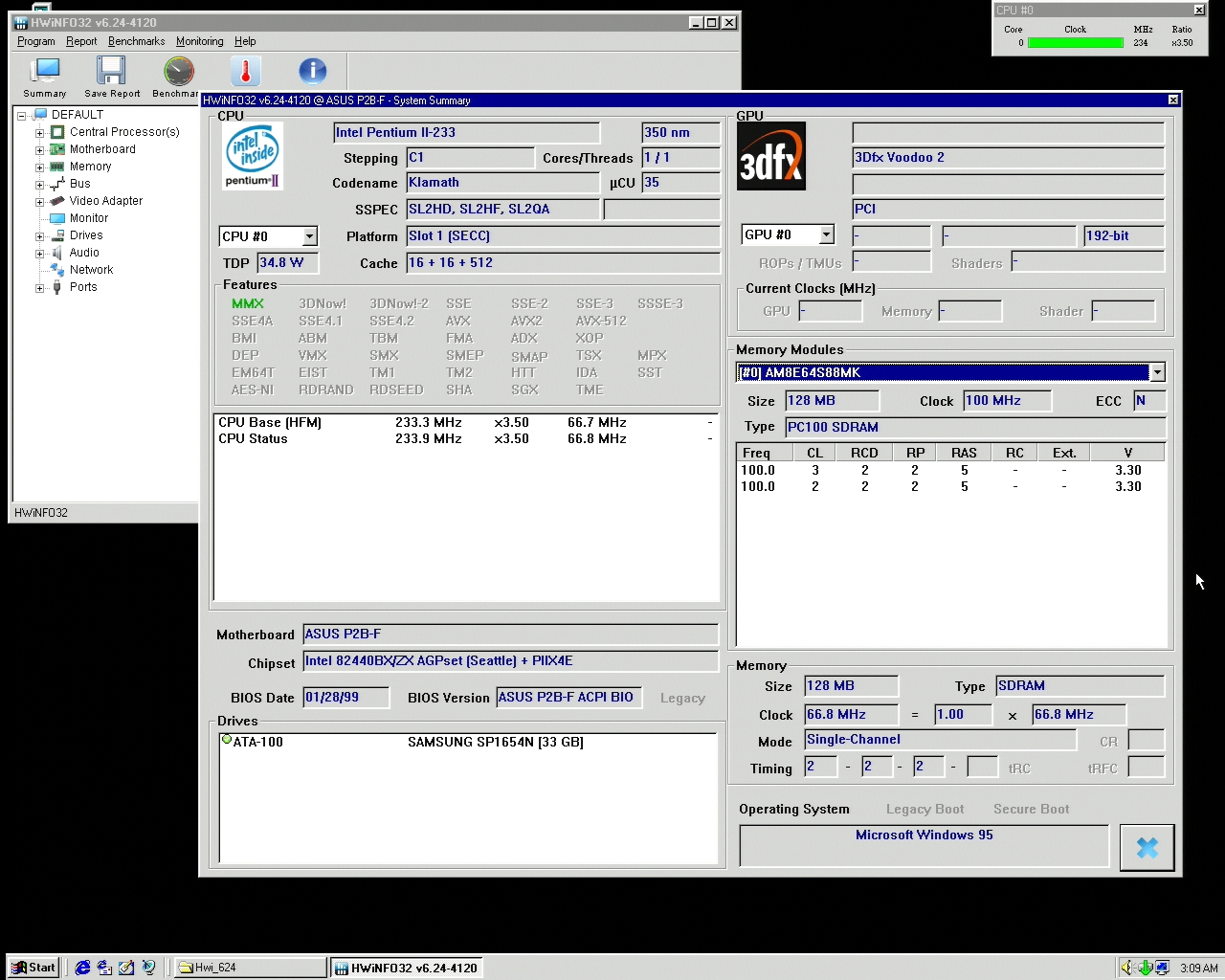

I'll be running some burn-in tests over the next few days to ensure the CPU, RAM, Voodoo2 and Matrox are behaving.
Update: 2023-01-22
- Removed Sound Blaster Vibra-16 (CT4170) and replaced it with an Audigy PCI (SB0100) due to some issues with stuttering in games.
- Added 3COM Fast EtherLink PCI
- Updated to Windows 98 SE for better stability and additional software.
- Removed bodged 40mm fan and replaced with Noctua 60mm case fan
- Added Arctic P12 120mm fan on a PCI bracket to provide additional cooling for the Voodoo2.
Update: 2024-10-27
- Replaced Sound Blaster with Magic S23 due to hanging/crashing while playing sound and MIDI simulataneously

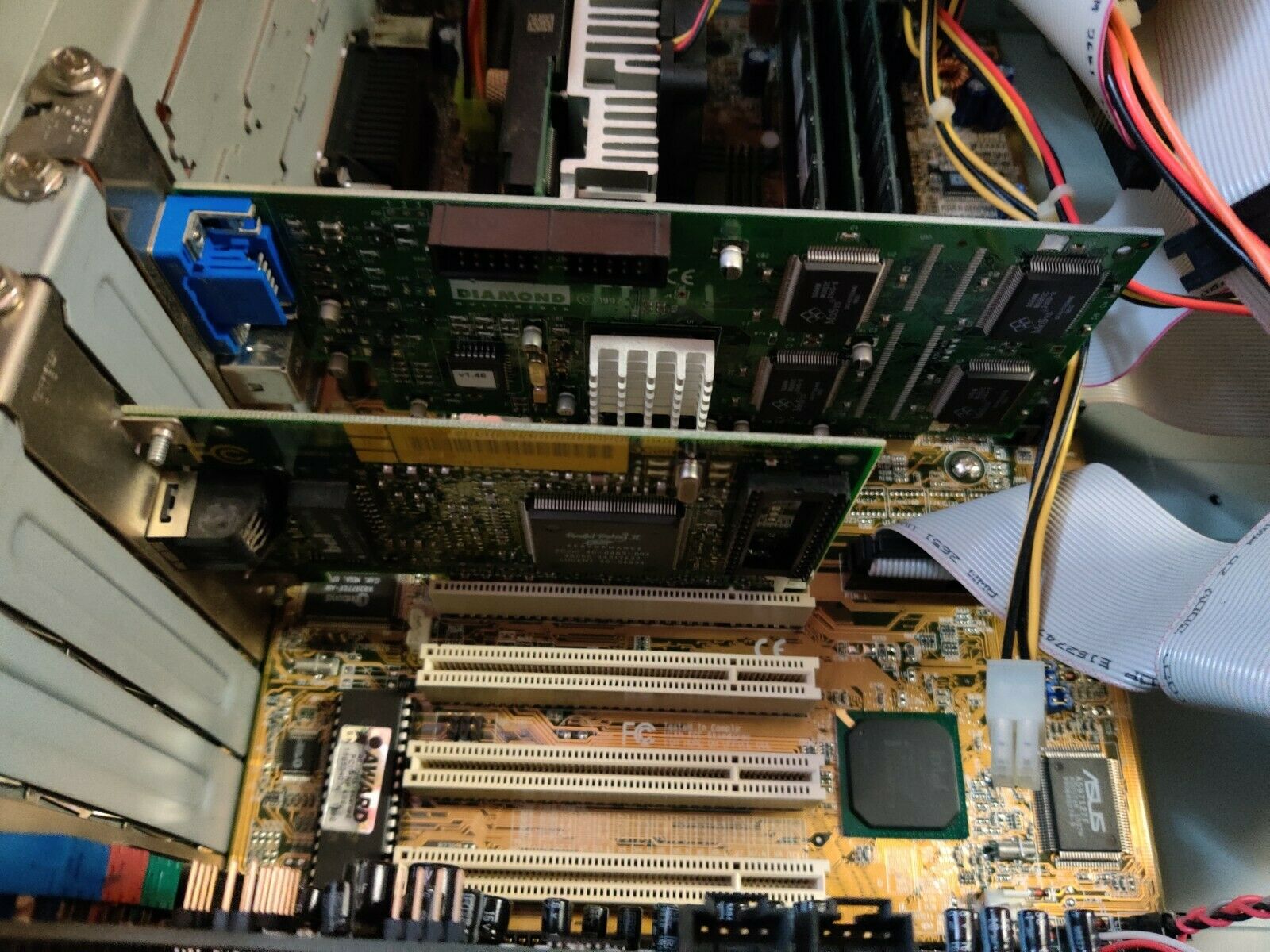

- Added a second Voodoo2 card for SLI
