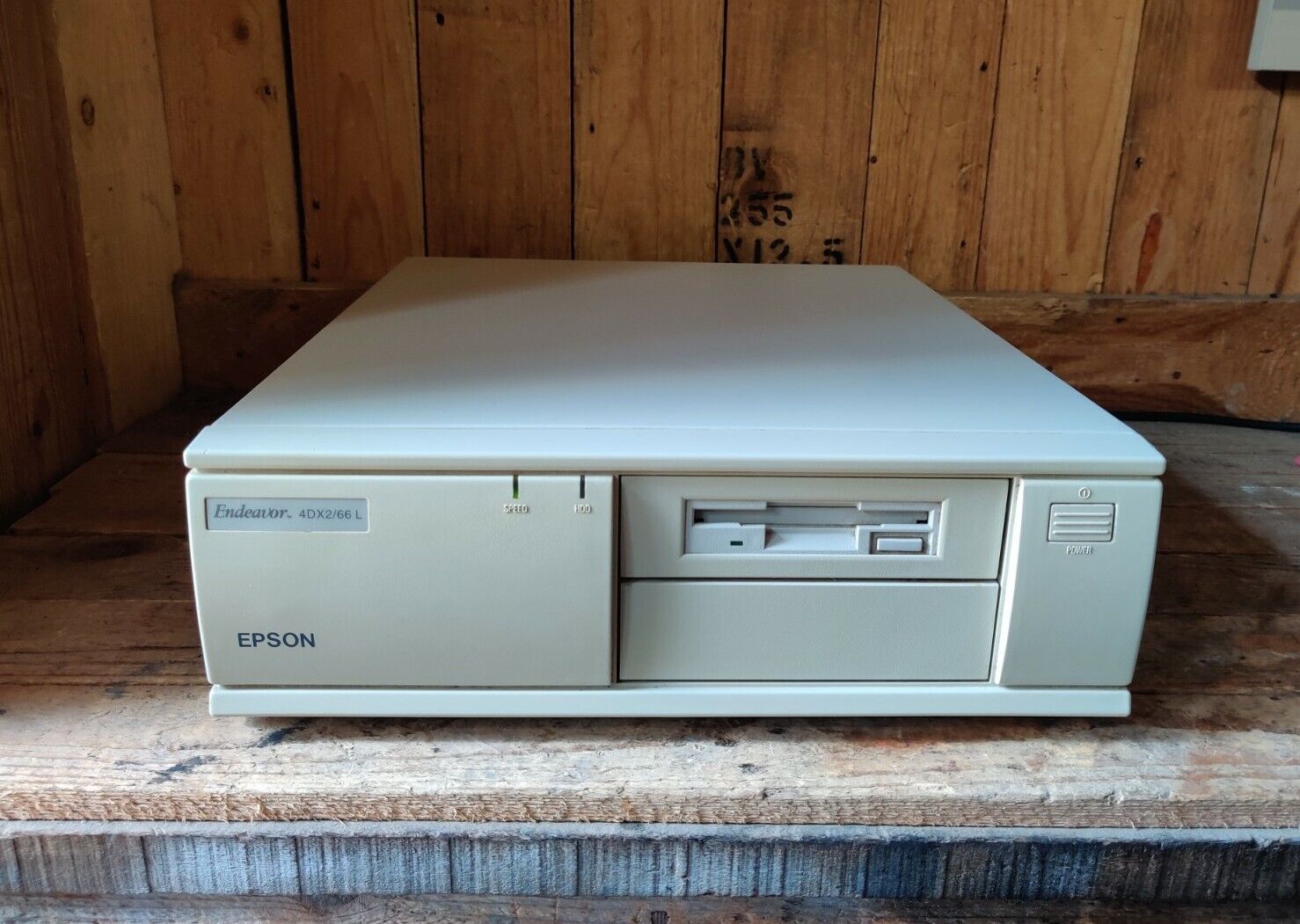

Full System (Endeavor L 486DX2/66)
WelshProgrammer June 21, 2026Specs
| Name | Value |
|---|---|
| Name | Endeavor L 486DX2/66 |
| Chassis | Epson Endeavor L CRx |
| HBA | TheCodeCache XT-IDE |
| HBA | Adaptec Fast SCSI Adapter |
| HBA | Western Digital MFM + Floppy Adapter |
| Hard Disk | Conner 425MB |
| Hard Disk | Miniscribe 20MB |
| Processor | Cyrix DX2 - 66 MHz |
| RAM | Kingston 16MB DRAM-FPM 70ns Non-ECC SIMM |
| RAM | Kingston 16MB DRAM-FPM 70ns Non-ECC SIMM |
| Sound Card | Oak Technology Mozart |
Details
Currently running MS-DOS 6.2 and Windows 3.11 for Workgroups.
I plan to do a fresh re-installation of Windows on this machine and potentially remove the network card since it now has a ZIP drive that I can use to very quickly transfer data.
Four zip disk transfers would easily fill the entire drive of this machine.

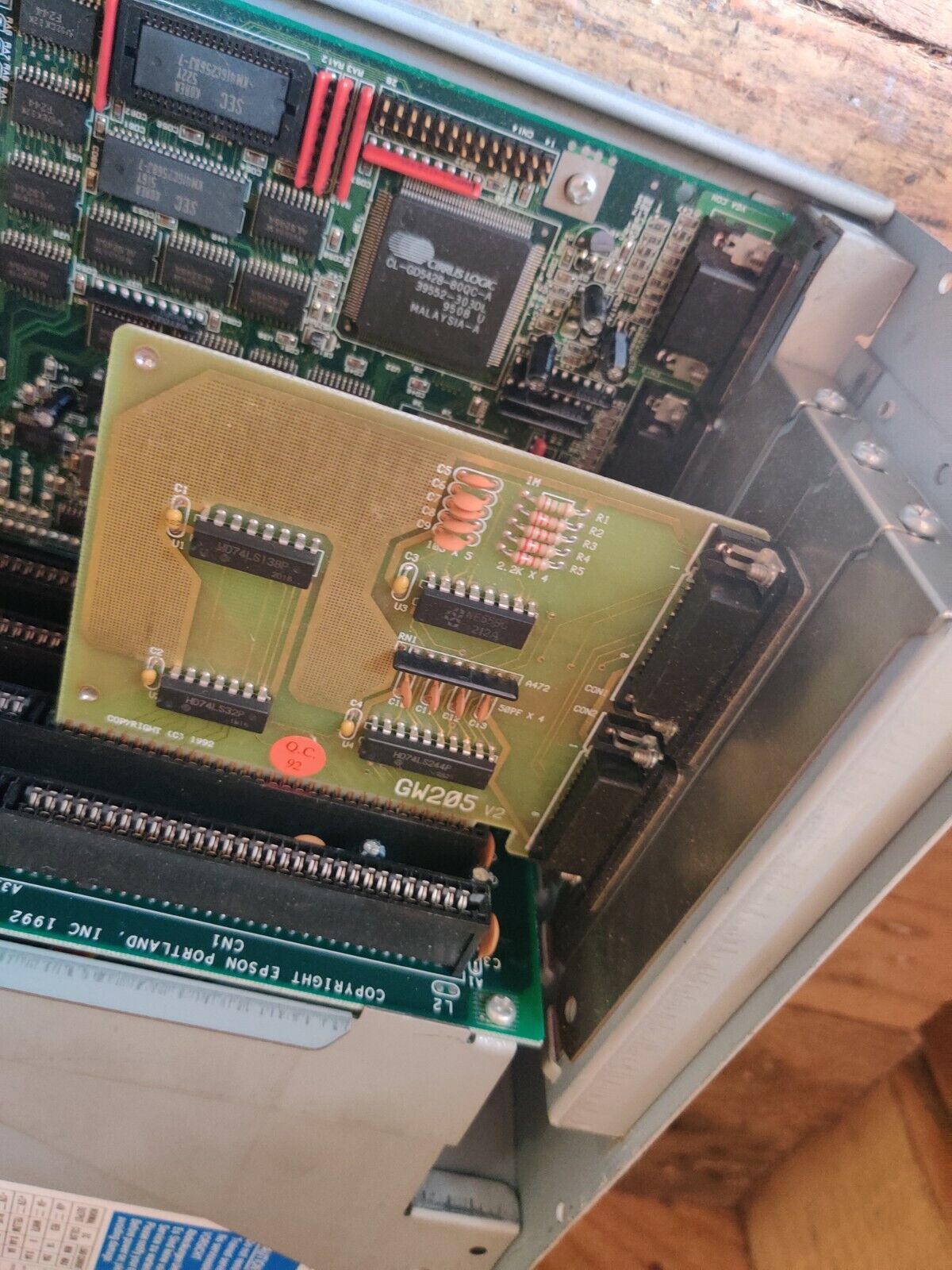

GW205 V2
When I received this machine, it had a dual gameport ISA card in it, but it did not appear to be functional.
It is marked as a "GW205 V2" card but I am unable to find any information about it at all as it lacks a manufacturer mark, it has no EEPROMs and no processor.
It consists of:
- 1x HD74LS244 (Octal Buffers) linked to a resistor pack for those lines
- 1x HD74LS32P (Quadruple OR Gate)
- 1x HD74LS138P (3-Line-to-8-Line Decode/Demux)
- 1x NE558 (Quad 555 Timer)
It seems to be using nothing but pure TTL logic chips to read the gameports and drive the ISA bus.
Images
